Core Subsystems for Uncrewed Autonomy
At the heart of every VayDyn platform are subsystems engineered for precision, resilience, and seamless integration. From high-accuracy GNSS modules to advanced gimbal cameras and compact flight controllers, these components provide the intelligence behind every mission.
Next-Gen GNSS Module

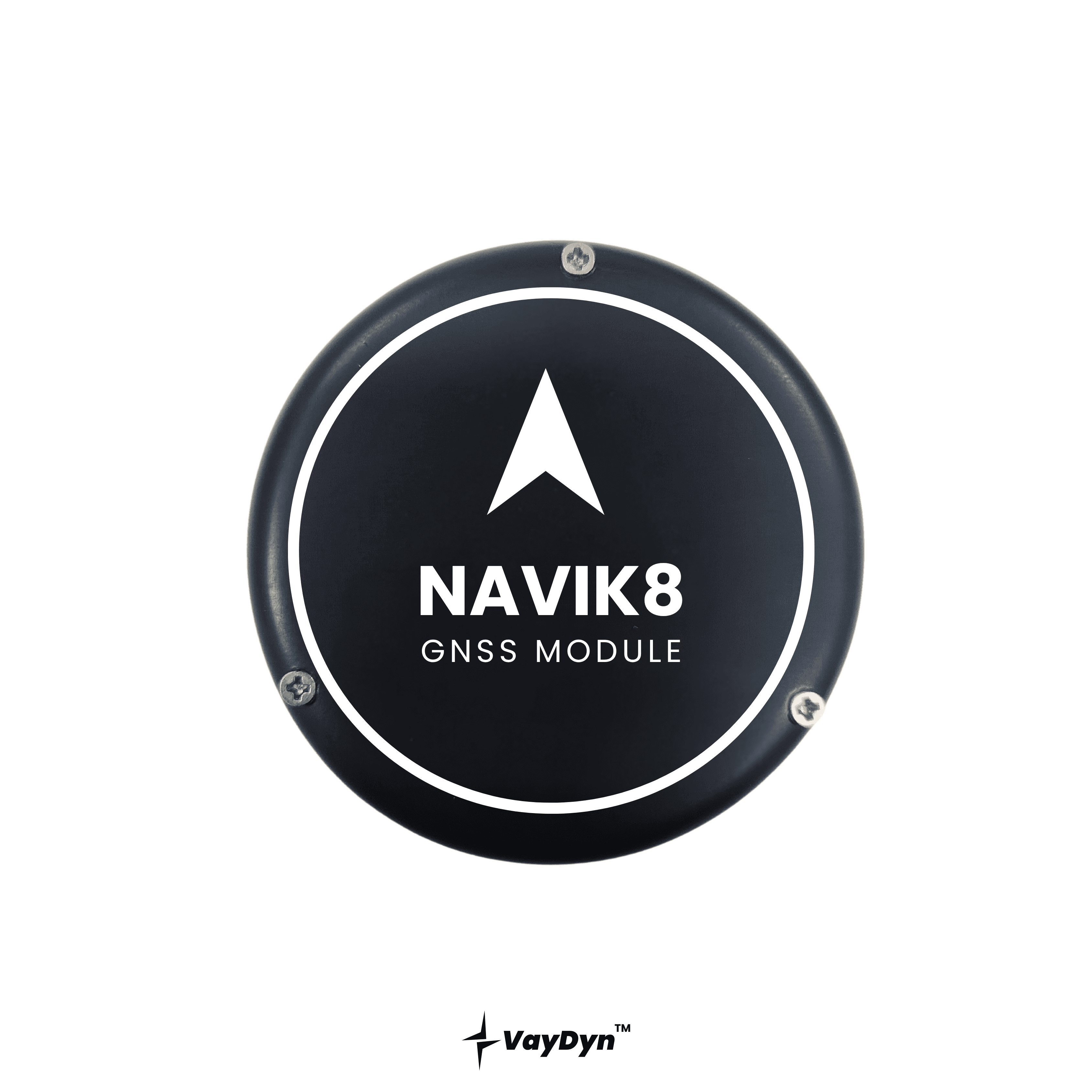

NAVIK8 - GNSS Module
Backed by a global community of users, our speakers combine cutting-edge tech with sleek design—made to stand out
Precision Navigation for UAVs
01
Dual-Band Accuracy
L1 + L5 reception with NavIC support delivers sub-meter positioning accuracy, even in multipath-heavy environments.
02
Multi-Constellation Coverage
Works seamlessly with GPS, Galileo, GLONASS, NavIC, and BeiDou for robust navigation in all terrains.
03
Fastest Satellite Acquisition
Hot start lock-on in under 3 seconds with 20+ satellites ensures rapid readiness for time-sensitive missions.
04
Rugged & Power Efficient
Compact 28 g module with tuned ceramic antenna and ultra-low power consumption for extended UAV operations.
Vision That Never Blinks

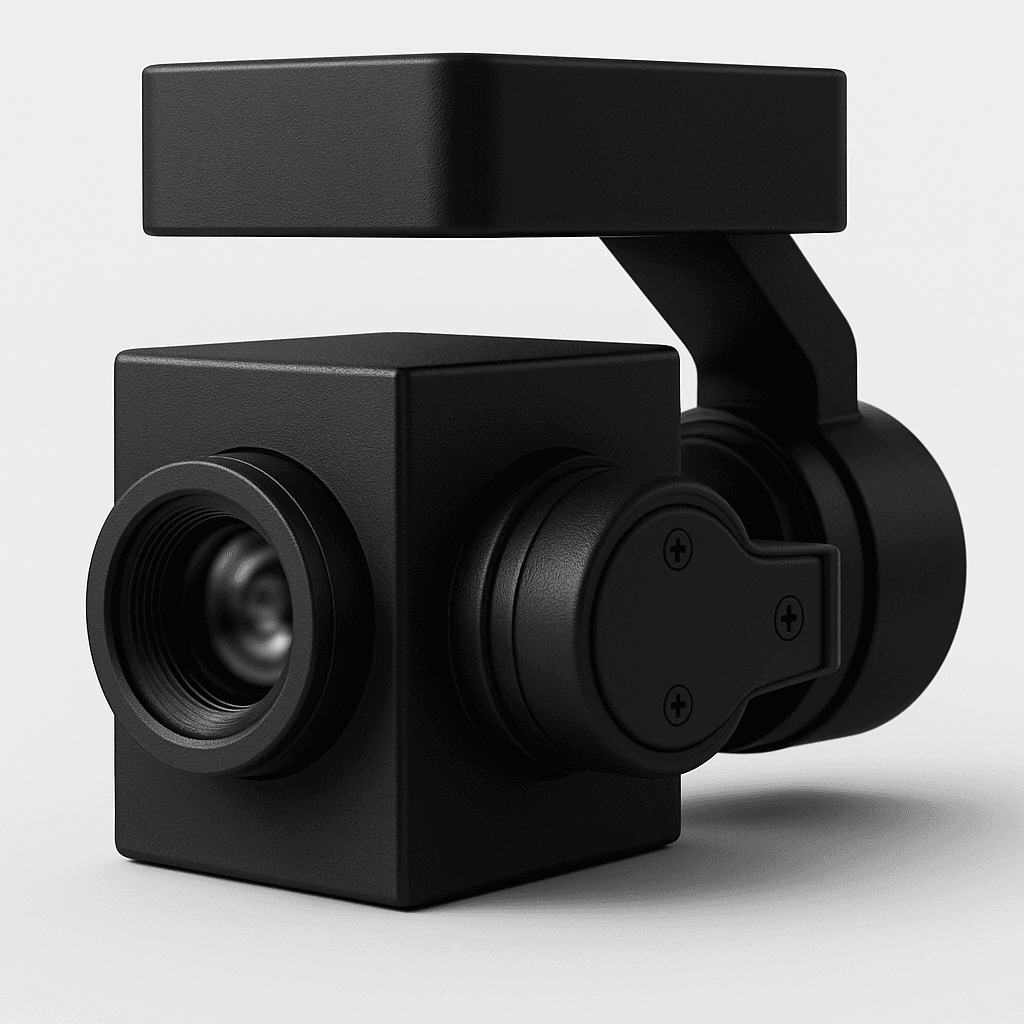

VISIO - Gimbal Camera
Sony STARVIS CMOS sensor delivering superior clarity in ultra-low light
Full HD video output with 10x optical zoom capability
Advanced imaging features: wide dynamic range, electronic image stabilization, defog, and 3D/2D noise reduction
Sensitivity down to 0.025 lx (B/W) for unmatched night operations
Compact 70g design with multiple output interfaces (HDMI, LVDS, CVBS)
MIlitary-Grade Flight controllers
OMNI - Flight Controller Series
Compact 32mm x 32mm design weighing under 8 grams
STM-H7 MCU with advanced processing for real-time stability and reliability
Triple redundant IMUs with industrial-grade sensors for precision control
Multiple auxiliary ports: 7 UARTs, 3 I2Cs, 4 ADCs for seamless integration
MAVLink compatible with PX4/Ardupilot firmware for autonomous missions
Confidence in GPS-Denied Environments
FLOW - Optical & Distance Sensor
PixArt PAW3902 optical flow sensor for low-light performance
Broadcom ToF distance sensing up to 30m
Integrated 6-axis IMU for stability
ROS2, PX4, and Ardupilot compatible
Enables autonomous flight indoors and underground
Compact 32mm x 32mm design weighing under 8 grams
STM-H7 MCU with advanced processing for real-time stability and reliability
Triple redundant IMUs with industrial-grade sensors for precision control
Multiple auxiliary ports: 7 UARTs, 3 I2Cs, 4 ADCs for seamless integration
MAVLink compatible with PX4/Ardupilot firmware for autonomous missions
Designed for Pure Performance
01
Indigeneous Flight Control Architecture
Custom-built autopilots for seamless UAV integration.
02
Multi-GNSS Navigation Modules
Dual-band positioning with NavIC, Galileo, GPS, and GLONASS.
03
Smart Power Distribution Systems
Efficient, scalable power for demanding aerial platforms.
04
High-Performance ESCs
Advanced motor control with BLHeli_S and DShot support.
